APC 3000VA (SRV3KI) Easy UPS Online

APC 3000VA (SRV3KI):

The APC 3000VA (SRV3KI) delivers robust power protection in a tower form factor. This double-conversion online APC UPS safeguards critical equipment from power disturbances even during extreme power conditions.

Powerful Protection Technology

The APC 3000VA (SRV3KI)  utilizes true double-conversion online technology that completely isolates connected equipment from power anomalies:

• Pure sine wave output ensures compatibility with sensitive equipment
• Low 3% harmonic distortion for clean power delivery
• Wide input voltage range (160-280V at full load, 110-285V at half load)
• 88% efficiency at full load balances protection with energy consumption
• Internal bypass (automatic and manual) maintains continuous operation during UPS servicing
• 3:1 crest factor handles equipment with high inrush current requirements

Additionally, the SRV3KI offers configurable output voltage selection (220V, 230V, or 240V) to match your specific equipment needs.

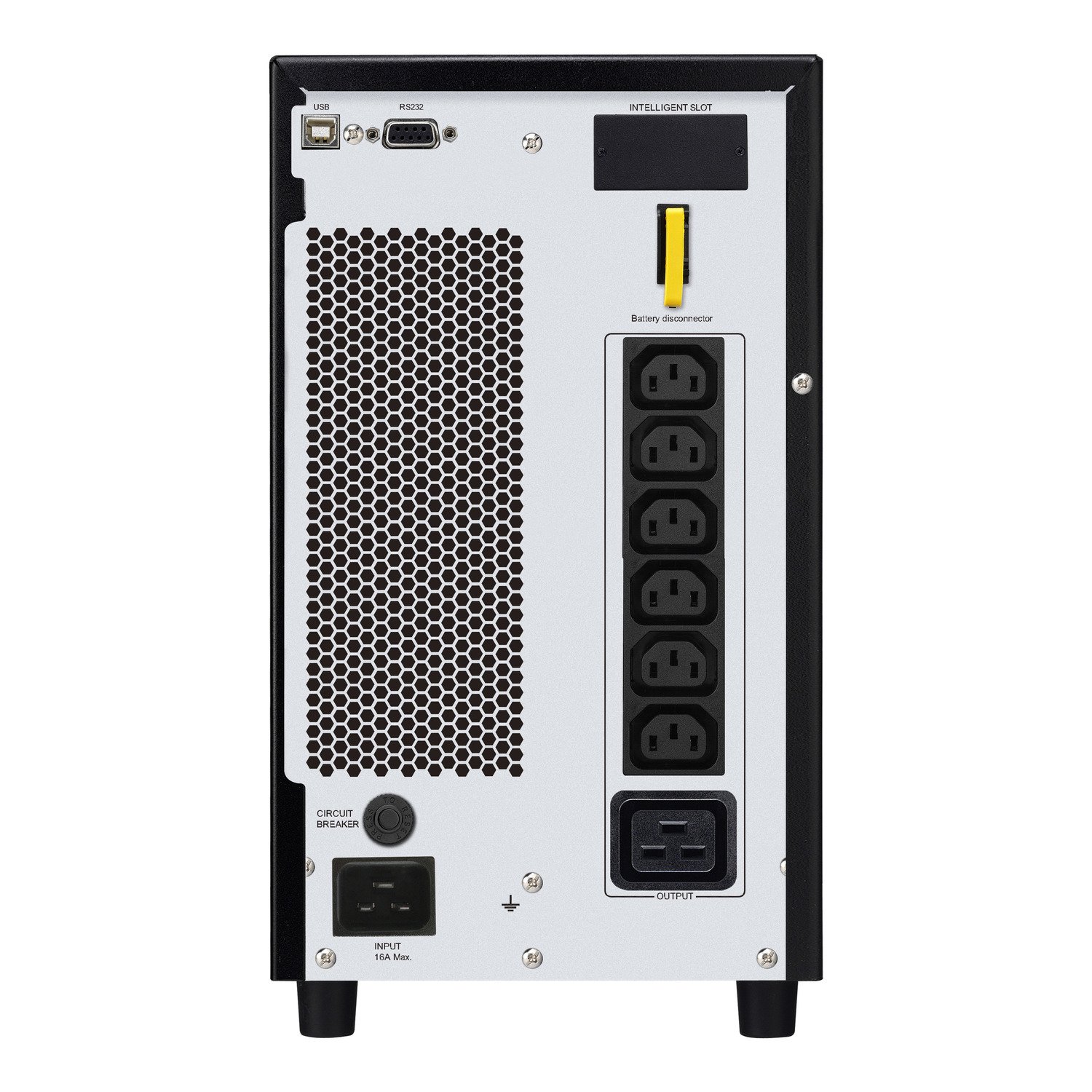

Comprehensive Connectivity

The SRV3KI features enhanced connectivity for diverse equipment:

• 6 IEC 60320 C13 outlets for standard equipment connections
• 1 IEC 60320 C19 outlet for devices requiring higher current
• IEC 60320 C20 input connection for flexible power sourcing
• USB and RS-232 ports for system monitoring and management
• One free slot for optional network management cards
• Multi-function LCD status and control console for operational visibility

The comprehensive package includes a C19 to Schuko power cable, C13 to C14 power cable, USB cable, RS-232 configuration cable, and detailed user manual for immediate deployment.

Reliable Battery System

The SRV3KI incorporates a dependable power backup solution:

• Lead-acid battery with 72V system for extended runtime
• 4-hour typical recharge time for quick recovery after power events
• 3-5 year battery life expectancy for long-term reliability
• User-replaceable battery design (APCRBCV205) for simplified maintenance
• 60W rated battery charger power for efficient recharging

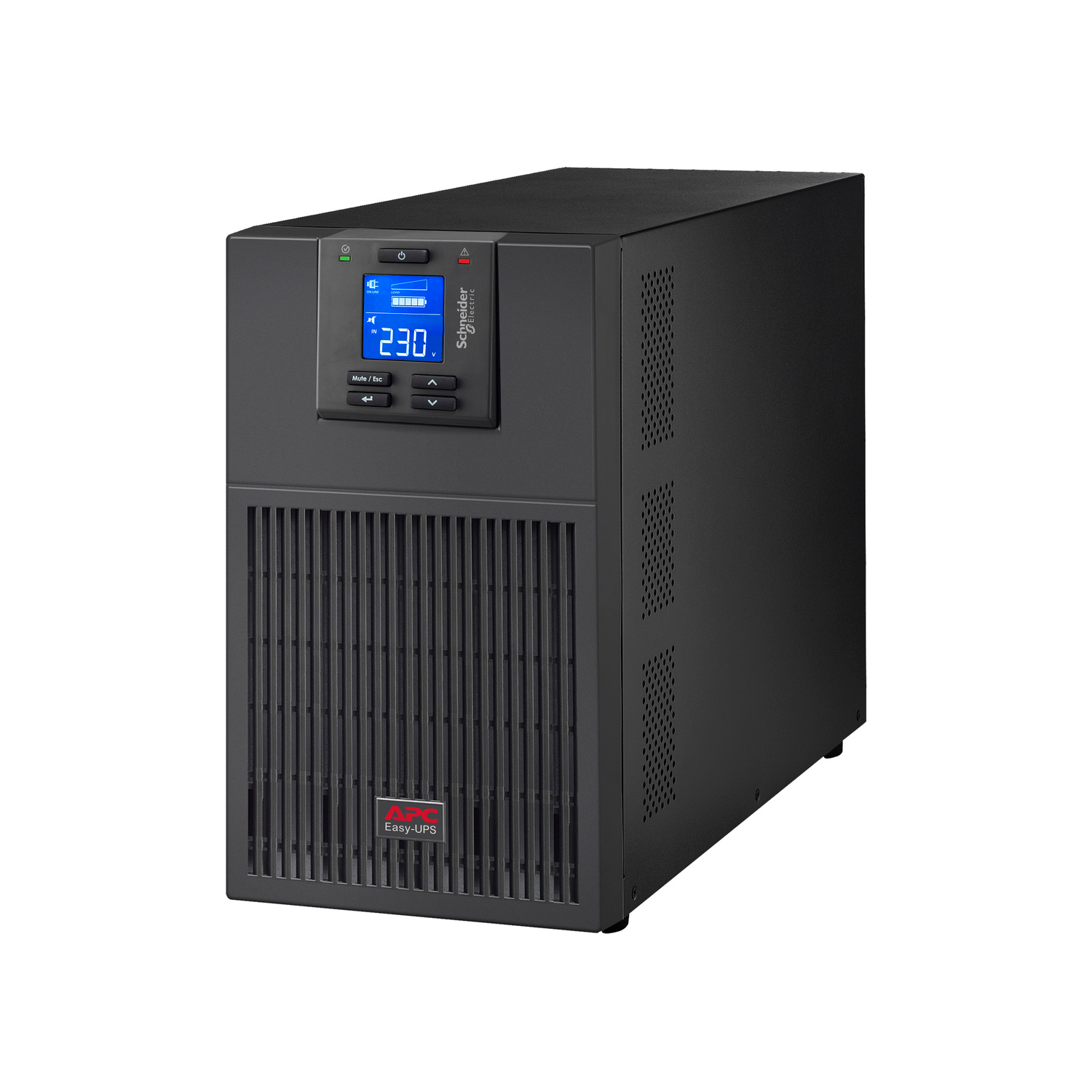

Tower Design for Flexible Placement

The SRV3KI features a vertical tower design for placement flexibility:

• Compact footprint (19 cm width × 42.5 cm depth) conserves floor space
• Vertical orientation for optimal cooling and operation
• Front-facing LCD display for easy status monitoring
• 33.6 cm height fits under standard desks and workspaces
• Black (RAL 7010) professional finish to blend with office equipment
• Front-facing connectors for easy access

Ideal For These Users

• Small to Medium Businesses – With 3000VA/2400W capacity, the SRV3KI can power multiple workstations, servers, and networking equipment. The tower form factor makes it suitable for offices without rack infrastructure.
• IT Support Teams – The inclusion of both C13 and C19 outlets provides flexibility for powering various IT equipment with different power requirements. The free expansion slot enables integration with existing network management systems.
• Retail and Point-of-Sale Operations – The wide operating temperature range (0-40°C) and high humidity tolerance (0-95% non-condensing) make this UPS suitable for various retail environments where reliable power is essential for continuous operations.
• Healthcare Facilities – The pure sine wave output and double-conversion technology provide clean power necessary for sensitive medical equipment, while the 600J surge protection shields devices from harmful power spikes.

APC 3000VA (SRV3KI)  Technical Specifications

Output Specifications

• Maximum Configurable Power: 2400W / 3000VA
• Nominal Output Voltage: 230V (configurable for 220V or 240V)
• Output Frequency: 50/60Hz +/- 3 Hz (sync to mains)
• Waveform Type: Sine wave
• Harmonic Distortion: 3%
• Load Crest Factor: 3:1
• Topology: Double conversion online
• Efficiency at Full Load: 88%
• Output Connections: 6 IEC 60320 C13, 1 IEC 60320 C19
• Bypass Type: Internal bypass (automatic and manual)

Input Specifications

• Nominal Input Voltage: 230V
• Input Frequency: 40-70 Hz auto sensing
• Input Voltage Range: 160-280V (full load), 110-285V (half load)
• Input Connection Type: IEC 60320 C20
• Cable Length: 1.5m
• Other Input Voltages: 220V, 240V

Battery & Runtime

• Battery Type: Lead-acid battery
• Battery Voltage: 72V
• Battery Life: 3-5 year(s)
• Replacement Battery: APCRBCV205
• Battery Recharge Time: 4 hours
• Battery Charger Power: 60W rated

Physical Specifications

• Form Factor: Tower
• Dimensions (H × W × D): 33.6 cm × 19 cm × 42.5 cm
• Net Weight: 26.8 kg
• Color: Black (RAL 7010)
• Mounting: Vertical position, not rack-mountable
• Mounting Location: Front

Communications & Management

• Interface Ports: USB, RS-232
• Free Slots: 1 (for optional cards)
• Control Panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm

Environmental Specifications

• Operating Temperature: 0-40°C
• Operating Relative Humidity: 0-95% non-condensing
• Operating Altitude: 0-3000m
• Storage Temperature: -20-50°C
• Storage Altitude: 0-15000m
• Acoustic Level: 50 dBA
• Heat Dissipation: 910 Btu/h
• IP Rating: IP20

Surge Protection

• Surge Energy Rating: 600 Joules

Compliance

• Product Certifications: CE, UKCA, EAC, TISI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Environmental Compliance: EU RoHS Directive Compliant, REACh Declaration
• Energy Efficiency: Energy efficient product
• Warranty: 1 year

Included Equipment

• 1 IEC 60320 C19 to Schuko power cable
• 1 IEC 60320 C13 to C14 power cable
• 1 USB cable
• 1 RS-232 configuration cable
• User manual
