APC 1600VA (BX1600MI) Back-UPS

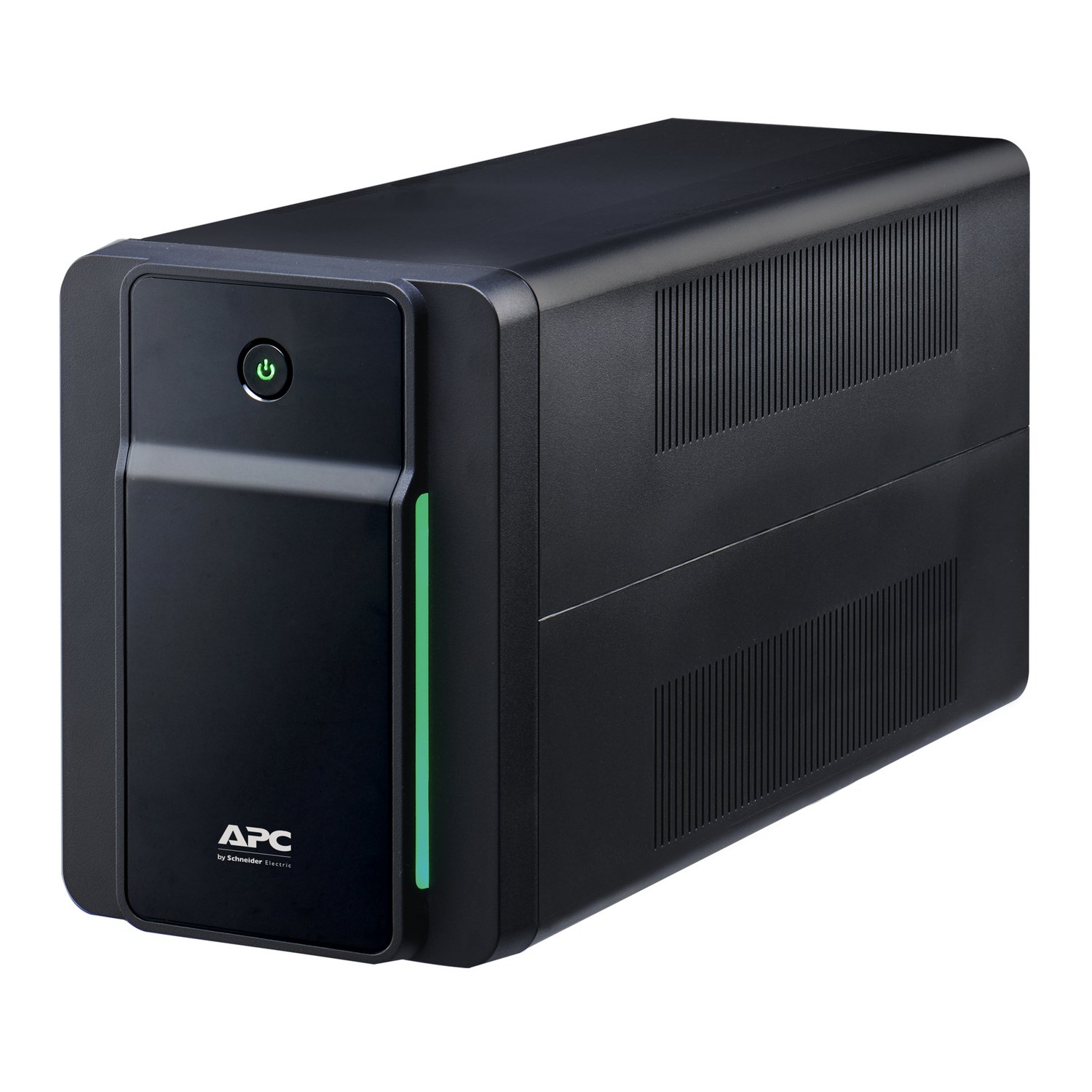

APC 1600VA (BX1600MI)

The APC 1600VA (BX1600MI) provides reliable power protection in a compact, cost-effective design. This entry-level 1600VA/900W apc ups offers essential backup power with automatic voltage regulation for home electronics, small business equipment, and basic IT infrastructure.

Straightforward Power Protection

The BX1600MI delivers fundamental protection features for everyday power needs:

• Line-interactive topology with Automatic Voltage Regulation (AVR)
• Stepped approximation to a sinewave output
• 6 IEC 60320 C13 outlets for connecting multiple devices
• Fast transfer time of just 6ms typical (10ms maximum)
• LED status indicators for easy monitoring
• Wide input voltage range from 140V to 300V

Furthermore, the BX1600MI operates with a reasonable runtime that provides adequate protection during brief power outages. At half load (450W), it offers 6 minutes and 30 seconds of runtime, while at full load (900W), it provides 1 minute of backup time—sufficient for basic power bridging and safe shutdown procedures.

Compact Design Features

The BX1600MI comes in a lightweight, space-saving package:

• Practical tower form factor (19 × 14 × 39 cm)
• Lightweight design at just 10.3 kg
• Simple LED status display indicating “on line” and “on battery” status
• IEC 60320 C13 input connection
• Black housing that integrates easily into various environments

Additionally, the unit features a low acoustic noise level of only 40 dBA, making it suitable for quiet environments where noise disruption should be minimized, such as home offices or small business settings.

Battery Performance

The BX1600MI incorporates a reliable battery system:

• 24V lead-acid battery with 7.0 Ah capacity
• 3-5 year typical battery life expectancy
• User-replaceable battery design (APCRBC176)
• 8-hour battery recharge time for recovery after discharge

The user-replaceable battery feature ensures that maintenance is straightforward, extending the overall lifespan of the UPS and providing a better long-term value proposition.

Equipment Protection

The BX1600MI includes APC’s equipment protection policy:

• Lifetime protection of up to 50,000 euros for connected equipment
• Surge energy rating of 273 joules
• IP20 protection rating against physical intrusion
• Operating temperature range of 0-40°C
• Humidity tolerance of 0-95% non-condensing

Environmental Considerations

The BX1600MI is designed with sustainability in mind:

• Fully compliant with EU RoHS Directive (no exemptions needed)
• REACh Declaration compliance
• China RoHS declaration compliance
• User-replaceable battery extending product lifecycle
• Part of Schneider Electric’s “Use Better, Use Longer, Use Again” initiative

Ideal Users for the APC BX1600MI

This UPS solution is particularly well-suited for:

• Home users with multiple devices – The 900W/1600VA capacity with six IEC outlets provides adequate protection for home computers, routers, gaming consoles, and other electronics that need basic power protection.
• Small office environments – With its low noise operation (40 dBA) and compact footprint (19×14×39 cm), the BX1600MI integrates easily into small business settings without causing disruption.
• Regions with moderate power issues – The wide input voltage range (140-300V) and AVR functionality make this UPS appropriate for areas experiencing occasional voltage fluctuations rather than severe power problems.
• Budget-conscious users – The BX1600MI delivers essential power protection features with a focus on value, making it ideal for those seeking basic UPS functionality without advanced management features.
• Entry-level IT infrastructure – Small network equipment, modems, routers, and basic workstations can be effectively protected with this UPS’s surge protection (273J) and backup capability.

APC 1600VA (BX1600MI) Technical Specifications

Main Power Specifications

• Main Input Voltage: 230V
• Rated Power: 900W / 1600VA
• Product Type: Uninterruptible Power Supply (UPS)
• UPS Type: Line interactive
• Wave Type: Stepped approximation to a sinewave
• Input Voltage Limits: 140-300V
• Network Frequency: 50/60 Hz +/- 5 Hz auto-sensing
• Output Frequency: 50/60 Hz +/- 1 Hz sync to mains
• Input Power Factor at Full Load: 0.56
• Transfer Time: 6 ms typical, 10 ms maximum

Runtime Information

• Full Load Runtime: 1 minute at 900W
• Half Load Runtime: 6 minutes 30 seconds at 450W

Connections

• Input Connection Type: IEC 60320 C13
• Output Connection Type: 6 IEC 60320 C13
• Cable Length: 1.2 m
• Number of Cables: 1

Included Equipment

• User manual

Battery Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 24V
• Battery Capacity: 7.0 Ah
• Battery Recharge Time: 8 hours
• Battery Life: 3-5 years
• Replacement Battery: APCRBC176
• Battery Graph Comments: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Physical Attributes

• Color: Black
• Height: 19 cm
• Width: 14 cm
• Depth: 39 cm
• Net Weight: 10.3 kg
• Mounting Preference: No preference
• Mounting Mode: Not rack-mountable

Environmental Parameters

• Acoustic Level: 40 dBA
• Operating Altitude: 0-3,000 m
• Storage Altitude: 0-3,000 m
• Ambient Air Temperature for Operation: 0-40°C
• Ambient Air Temperature for Storage: -15-40°C
• Relative Humidity: 0-95% non-condensing
• IP Degree of Protection: IP20

Surge Protection and Filtering

• Surge Energy Rate: 273J

Communications & Management

• Control Panel: LED Status display with on line : on battery

Conformance and Certification

• Product Certifications: CE, CB, EAC
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Equipment Protection Policy: Lifetime: 50,000 euros

Environmental Compliance

• EU RoHS Directive: Compliant
• REACh Regulation: REACh Declaration
• China RoHS Regulation: China RoHS declaration

Warranty and Support

• Warranty: 1 year
