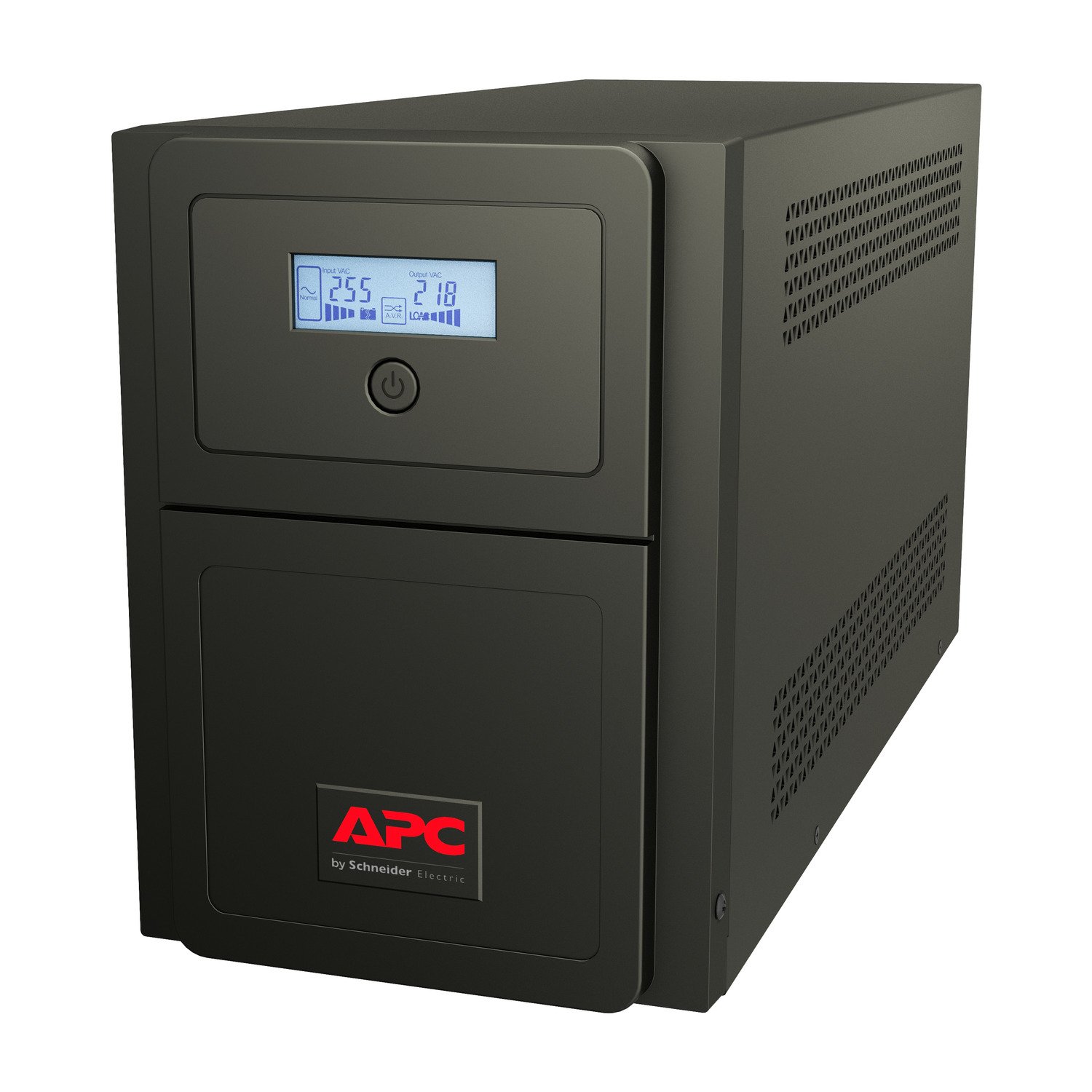

APC 1500VA (SMV1500AI-MSX) Easy UPS

APC 1500VA (SMV1500AI-MSX):

The APC 1500VA (SMV1500AI-MSX) provides reliable line-interactive power protection in a compact tower design. This 1500VA/1050W model delivers essential backup power and voltage regulation for home and small business equipment with universal outlet compatibility.

Versatile Power Protection

The SMV1500AI-MSX offers practical features for everyday power needs:

• Line-interactive topology with Automatic Voltage Regulation (AVR)
• Pure sine wave output for compatibility with sensitive electronics
• 4 universal receptacle outlets accommodating various plug types
• Rapid transfer time of just 2-6ms typical (12ms maximum)
• LCD display for easy monitoring of UPS status and power conditions
• 1050W capacity suitable for desktop computers and peripherals

Additionally, the SMV1500AI-MSX provides a 3:1 crest factor capability, allowing it to handle equipment with high startup power requirements without overloading. The unit operates efficiently across a broad input voltage range from 165V to 290V, making it suitable for areas with inconsistent power quality.

User-Friendly Interface

The SMV1500AI-MSX features an intuitive control system:

• LCD display showing input voltage, battery capacity, and load level
• Visual indicators for operation mode (battery, line, fault)
• Audible alarms for different conditions (on battery, low battery, overload)
• Graph display for visual reference of critical parameters
• USB connectivity for basic communication with computers

The clear status indicators allow users to monitor power conditions at a glance, while the configurable alarms provide timely notifications of potential issues requiring attention.

Battery Performance

The SMV1500AI-MSX includes a reliable backup power system:

• 24V lead-acid battery with 4-hour recharge time
• 3-5 year typical battery life expectancy
• User-replaceable battery design for easy maintenance
• 54W rated battery charger power for efficient recharging

These features ensure the UPS provides dependable power during outages while offering straightforward maintenance through its user-replaceable battery system.

Environmental Considerations

The SMV1500AI-MSX is designed with sustainability in mind:

• Fully compliant with EU RoHS Directive (no exemptions needed)
• REACh Declaration compliance
• China RoHS declaration compliance
• WEEE compliance for proper disposal in European Union markets
• User-replaceable battery extending product lifecycle
• Part of Schneider Electric’s “Use Better, Use Longer, Use Again” initiative

Physical Specifications

The tower design offers practical dimensions for placement in various environments:

• Height: 22 cm
• Width: 16 cm
• Depth: 41 cm
• Net weight: 17.8 kg
• Black housing color
• Non-rack-mountable form factor

The UPS operates effectively across various conditions:

• Operating temperature: 0-40°C
• Storage temperature: -10-40°C
• Operating altitude: up to 3,000m
• Relative humidity: 0-95% non-condensing
• Acoustic level: 45 dBA
• IP20 protection rating

Ideal Users for the APC SMV1500AI-MSX

This UPS solution is particularly well-suited for:

• Home office users – The 1050W/1500VA capacity combined with universal outlets provides flexible power protection for home workstations with multiple peripherals.
• Small retail businesses – With its universal outlets and line-interactive topology with AVR, the SMV1500AI-MSX can protect point-of-sale systems and essential equipment against common power problems.
• Regions with varying power quality – The wide input voltage range (165-290V) makes this model appropriate for locations experiencing frequent voltage fluctuations without constant outages.
• Users needing multiple plug compatibility – The 4 universal receptacles accommodate various plug types without requiring adapters, making this UPS versatile for international equipment.
• Budget-conscious users seeking essential protection – The SMV1500AI-MSX provides core power protection features (sine wave output, AVR, battery backup) at a more accessible price point than more advanced models.

APC 1500VA (SMV1500AI-MSX) Technical Specifications

Main Power Specifications

• Main Input Voltage: 230V (also supports 220V, 240V)
• Main Output Voltage: 230V
• Rated Power: 1050W / 1500VA
• Product Type: Uninterruptible Power Supply (UPS)
• UPS Type: Line interactive
• UPS Size: WS
• Wave Type: Sine wave
• Input Voltage Limits: 165-290V
• Network Frequency: 45-65 Hz +/- 1 Hz auto-sensing
• Output Frequency: 50/60 Hz +/- 1 Hz unsynchronised
• Crest Factor: 3:1
• Transfer Time: 2-6 ms typical, 12 ms maximum

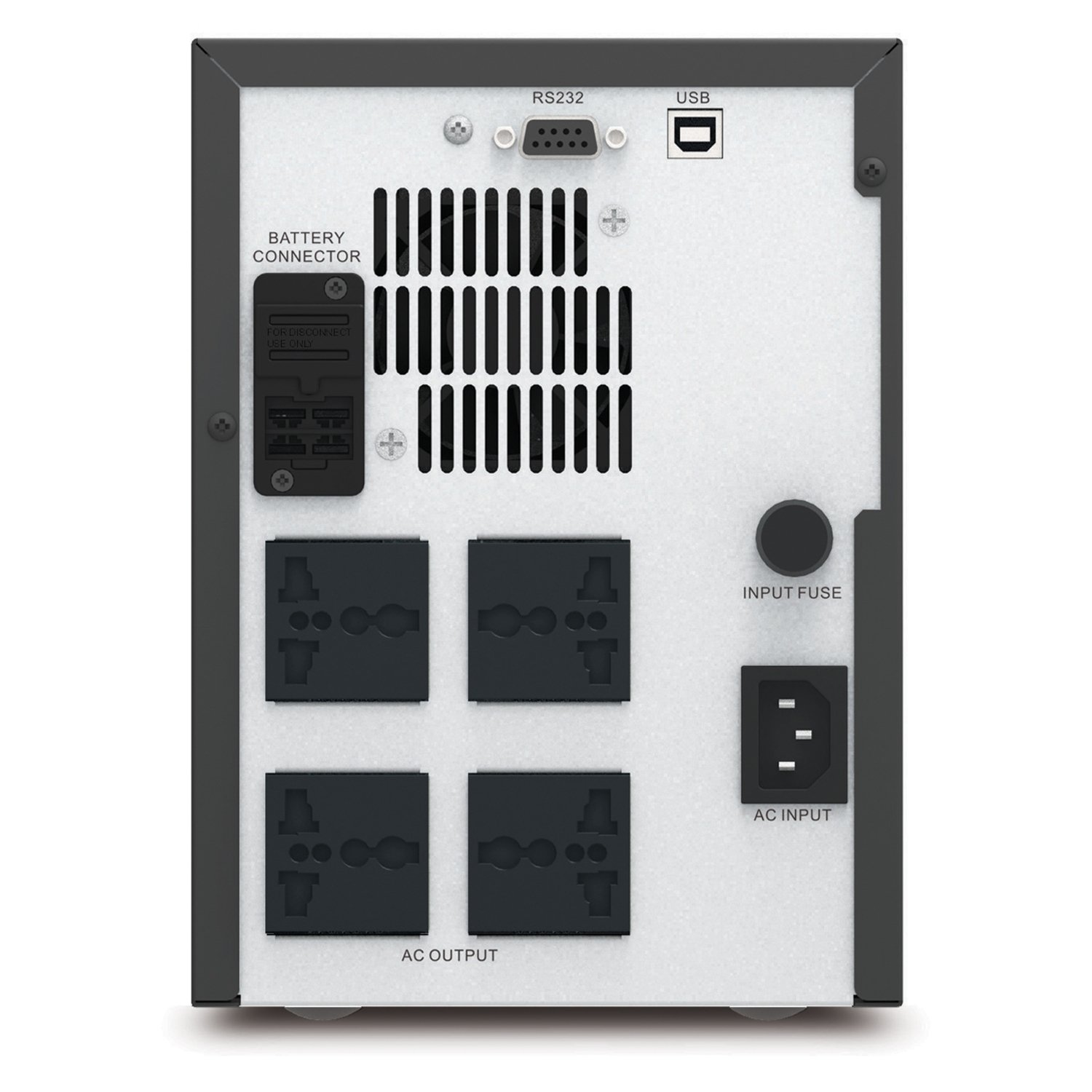

Connections

• Input Connection Type: IEC 60320 C14
• Output Connection Type: 4 universal receptacles
• Number of Cables: 1

Included Equipment

• Documentation CD
• User manual
• USB cable

Battery Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 24V
• Battery Recharge Time: 4 hours
• Battery Life: 3-5 years
• Battery Charger Power: 54W rated

Physical Attributes

• Color: Black
• Height: 22 cm
• Width: 16 cm
• Depth: 41 cm
• Net Weight: 17.8 kg
• Mounting Preference: No preference
• Mounting Mode: Not rack-mountable

Environmental Parameters

• Acoustic Level: 45 dBA
• Operating Altitude: 0-3,000 m
• Storage Altitude: 0-15,000 m
• Ambient Air Temperature for Operation: 0-40°C
• Ambient Air Temperature for Storage: -10-40°C
• Relative Humidity: 0-95% non-condensing
• IP Degree of Protection: IP20

Surge Protection and Filtering

• Surge Energy Rate: 190J

Communications & Management

• Graph Display: 1
• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm

Conformance and Certification

• Product Certifications: CE
• Environmental Compliance: EU RoHS Directive (Compliant), REACh Declaration, China RoHS declaration
• WEEE: Must be disposed on European Union markets following specific waste collection

Warranty and Support

• Warranty: 1 year
