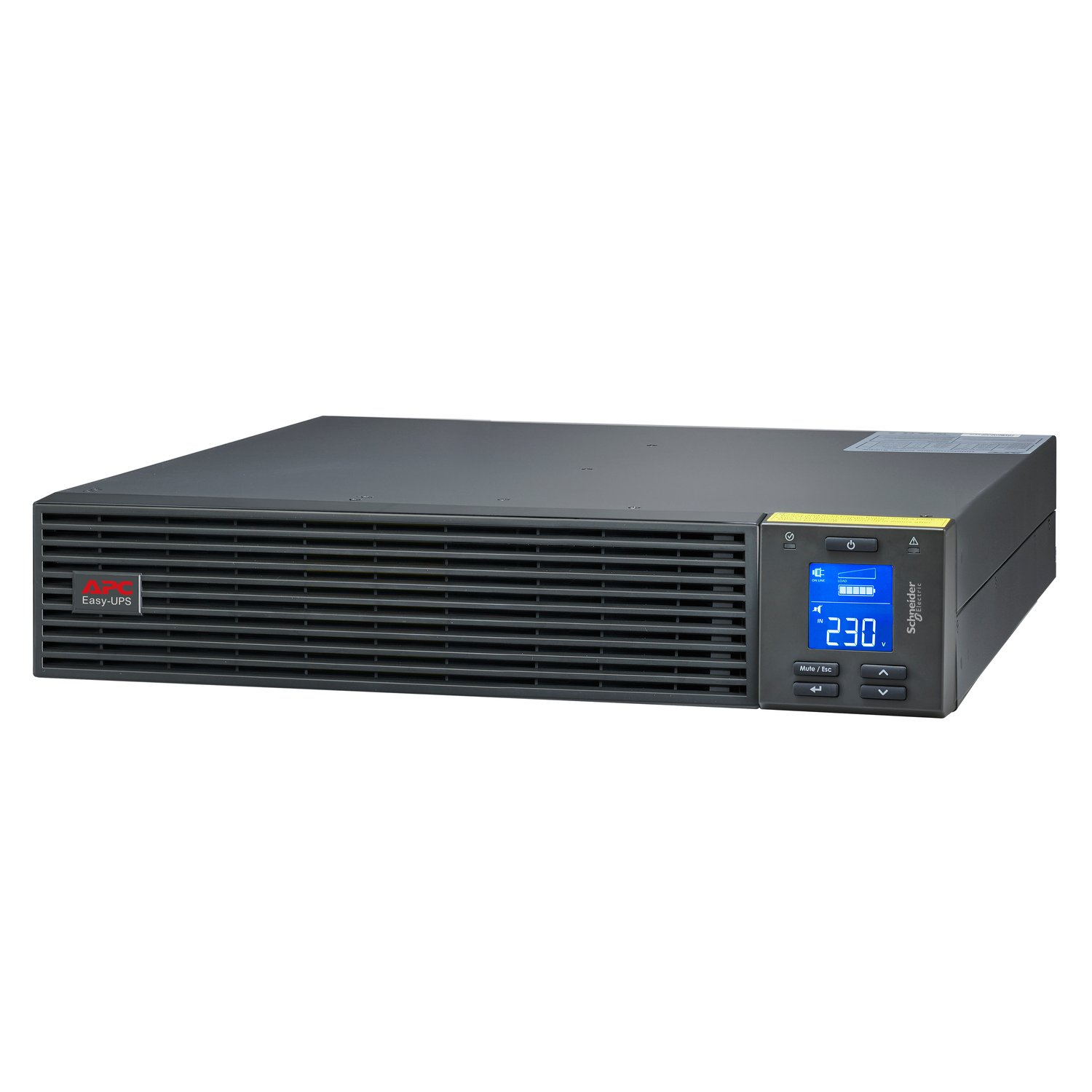

APC 1000VA (SRV1KRIRK) Easy UPS Rackmount

APC 1000VA (SRV1KRIRK):

The APC 1000VA (SRV1KRIRK)  delivers reliable double-conversion power protection in a space-efficient 2U rackmount form factor. This apc ups is engineered to safeguard critical equipment in data centers and network closets, providing clean power even during severe electrical disturbances.

Rackmount Design Advantages

The SRV1KRIRK model features a specialized design optimized for IT environments:

• Space-efficient 2U rackmount form factor (8.6 cm height)
• Includes complete rail kit and mounting brackets for easy installation
• Horizontal mounting position for standard 19-inch racks
• Front-access design for convenient status monitoring
• Compact 43.7 cm width × 31.2 cm depth dimensions

Furthermore, the rackmount configuration allows for organized cable management and integration with other IT equipment, creating a cohesive infrastructure within server racks and network cabinets.

Double-Conversion Technology

The SRV1KRIRK employs true double-conversion online topology that provides several key benefits:

• Complete isolation from power anomalies with zero transfer time
• Pure sine wave output with only 3% harmonic distortion
• Crest factor of 3:1 allowing for handling of equipment with high inrush current
• 88% efficiency at full load, optimizing energy consumption
• Internal bypass (both automatic and manual) for continuous operation during maintenance

Additionally, the UPS accommodates a wide input voltage range (110-285V at half load, 160-280V at full load) and frequency range (40-70Hz), making it resilient against unstable power conditions.

Connectivity & Management

The SRV1KRIRK provides multiple options for monitoring and control:

• Multifunction LCD status and control console for easy operation
• 3 IEC 60320 C13 output connections for powering critical equipment
• IEC 60320 C14 input connection for standard power sources
• USB compatibility for direct computer connection
• RS-232 configuration port for advanced settings
• One free intelligent card slot for future expansion capabilities

The UPS also features audible alarms that alert users to different conditions including “on battery,” “low battery,” and “overload” events, enabling proactive power management.

Battery Performance

The SRV1KRIRK includes a reliable backup power system:

• Lead-acid battery with 24V configuration
• 4-hour battery recharge time for quick recovery
• 3-5 year typical battery life expectancy
• Maximum runtime of 4 minutes at full load
• User-replaceable battery design (APCRBCV200)
• 30W rated battery charger power

Environmental Considerations

The SRV1KRIRK is designed with sustainability in mind:

• Energy efficient product design optimizing power consumption
• Compliant with EU RoHS Directive (with exemptions)
• REACh Declaration compliance
• User-replaceable battery and end-of-life information
• Part of Schneider Electric’s “Use Better, Use Longer, Use Again” initiative

Ideal Users for the APC SRV1KRIRK

This rackmount UPS solution is particularly well-suited for:

• Data center managers with limited rack space – The compact 2U form factor (8.6×43.7×31.2 cm) maximizes valuable rack real estate while providing essential power protection.
• Network administrators in mission-critical environments – The double-conversion online topology with pure sine wave output (3% harmonic distortion) ensures clean power for sensitive networking equipment.
• IT professionals managing server rooms – The included rail kit and mounting hardware allow for quick integration into standard 19-inch racks, complementing existing infrastructure.
• Small business owners with rackmount equipment – With 800W/1000VA capacity and a wide input voltage tolerance (110-285V), the SRV1KRIRK can protect multiple devices in unstable power environments.
• Edge computing deployments – The multifunction LCD panel provides clear status information while the 600J surge protection safeguards equipment in remote locations where power quality may be inconsistent.

APC 1000VA (SRV1KRIRK) Technical Specifications

Main Power Specifications

• Main Input Voltage: 230V (also supports 220V, 240V)
• Main Output Voltage: 230V (also supports 220V, 240V)
• Rated Power: 800W / 1000VA
• Product Type: Uninterruptible Power Supply (UPS)
• UPS Type: Double conversion online
• Wave Type: Sine wave
• Input Voltage Limits: 110-285V at half load, 160-280V at full load
• Network Frequency: 40-70 Hz auto-sensing
• Output Frequency: 50/60 Hz +/- 3 Hz sync to mains
• Harmonic Distortion: 3%
• Efficiency: 88% (full load)
• Crest Factor: 3:1
• Bypass Type: Internal bypass (automatic and manual)

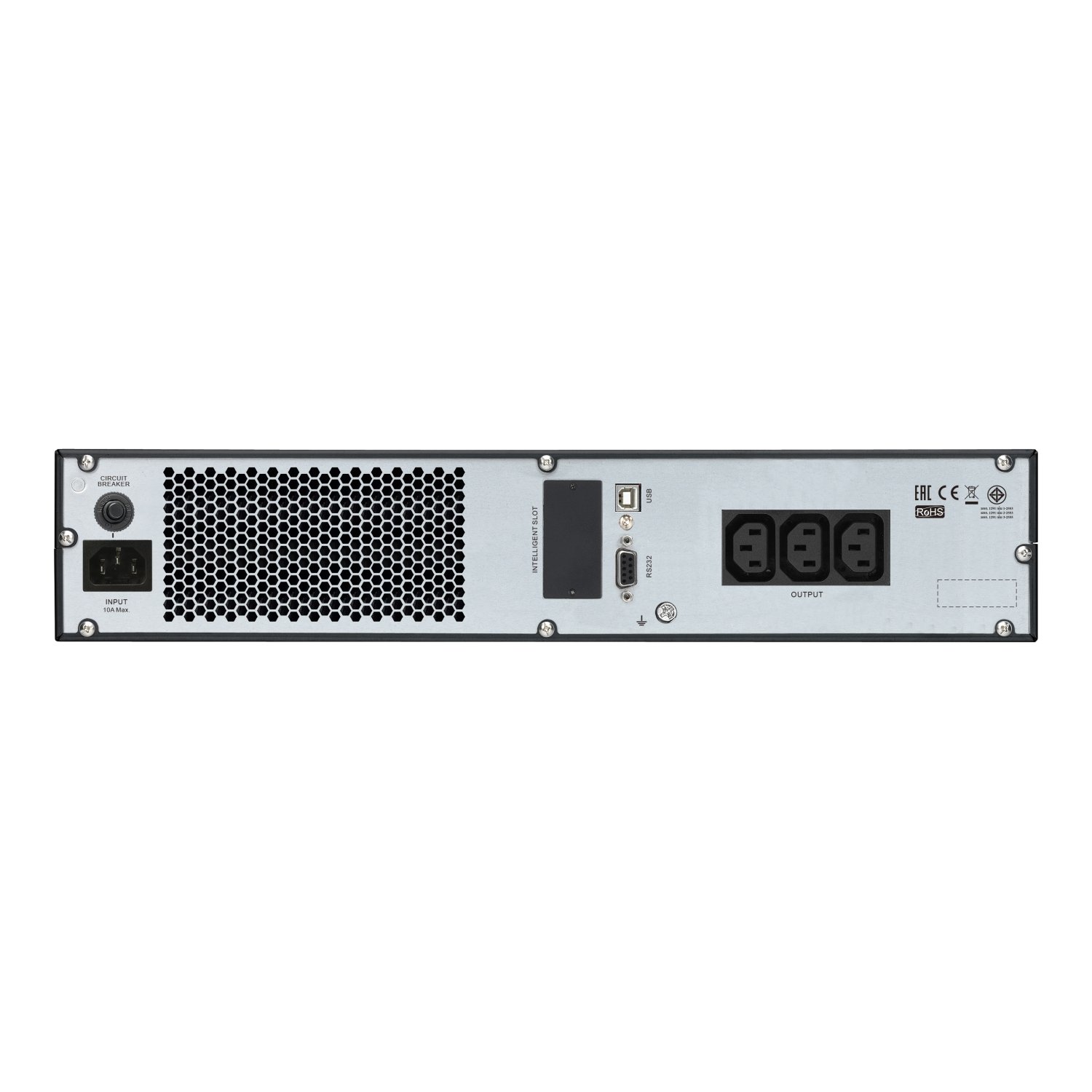

Connections

• Input Connection Type: IEC 60320 C14
• Output Connection Type: 3 IEC 60320 C13
• Cable Length: 1.50 m
• USB Compatible: Yes
• Free Slots: 1

Included Equipment

• 1 IEC 60320 C13 to Schuko power cable
• 1 IEC 60320 C13 to C14 power cable
• 1 USB cable
• 1 RS-232 configuration cable
• 1 rack mounting brackets
• 1 rack mounting support rails
• User manual

Battery Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 24V
• Battery Recharge Time: 4 hours
• Battery Life: 3-5 years
• Replacement Battery: APCRBCV200
• Battery Charger Power: 30W rated
• Maximum Runtime: 4 minutes at full load

Physical Attributes

• Color: Black (RAL 7010)
• Height: 8.6 cm (2U)
• Width: 43.7 cm
• Depth: 31.2 cm
• Net Weight: 11 kg
• Mounting Position: Horizontal
• Mounting Mode: Rack-mounted
• Mounting Location: Front
• Mounting Preference: Lower

Environmental Parameters

• Acoustic Level: 50 dBA
• Heat Dissipation: 372 Btu/h
• Operating Altitude: 0-3,000 m
• Storage Altitude: 0-15,000 m
• Ambient Air Temperature for Operation: 0-40°C
• Ambient Air Temperature for Storage: -20-50°C
• Relative Humidity: 0-95% non-condensing
• IP Degree of Protection: IP20

Surge Protection

• Surge Energy Rate: 600J

Communications & Management

• Control Panel: Multifunction LCD status and control console
• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm

Conformance and Certification

• Product Certifications: CE, EAC, TISI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental Compliance

• EU RoHS Directive: Compliant with Exemptions
• REACh Regulation: REACh Declaration

Warranty and Support

• Warranty: 1 year
