Description

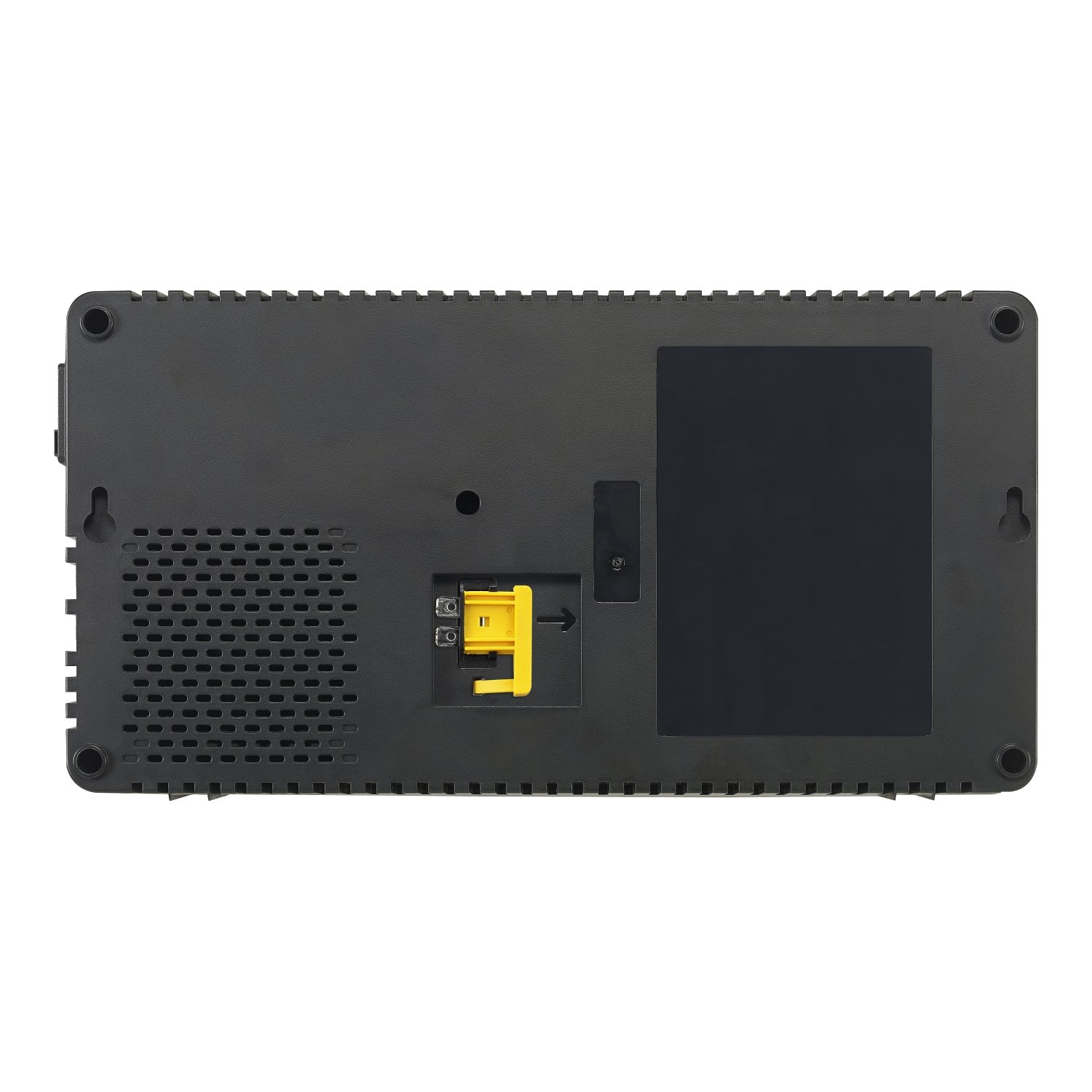

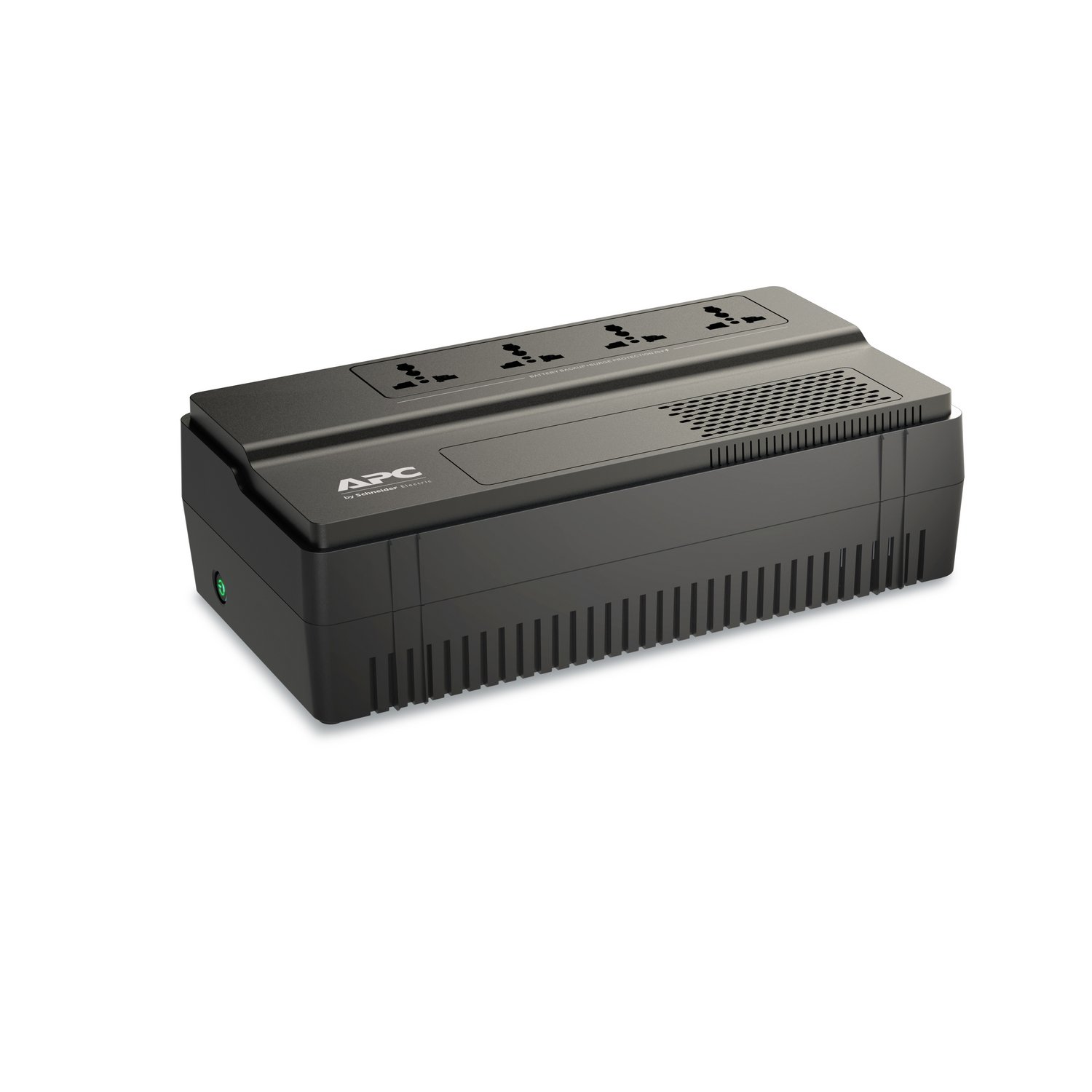

APC 1000VA (BV1000I-MSX)

The APC 1000VA (BV1000I-MSX) delivers essential power protection in an ultra-compact design. This entry-level 1000VA/600W apc ups offers basic backup power with Automatic Voltage Regulation for home electronics and small office equipment in a slim, space-saving form factor.

Basic Power Protection

The BV1000I-MSX delivers fundamental protection features for everyday power needs:

  • Line-interactive topology with Automatic Voltage Regulation (AVR)
  • Stepped approximation to a sinewave output
  • 4 universal receptacles accommodating various plug types
  • Fast transfer time of just 6ms typical (10ms maximum)
  • Audible alarms for different power conditions
  • Moderate input voltage range from 170V to 280V

Furthermore, the BV1000I-MSX features British standard BS1363A input connection, making it particularly suitable for regions using this plug format. The unit includes basic alarms that provide audible notification for “on battery,” “low battery,” and “overload” conditions.

Ultra-Compact Design

The BV1000I-MSX stands out with its exceptionally small footprint:

  • Low-profile form factor (9.25 × 16.05 × 30.5 cm)
  • Extremely lightweight at just 5.7 kg
  • Slim desktop design that fits easily on or under desks
  • Simple status indicators
  • 1.5 meter cable length for flexible placement
  • Black housing that blends into home and office environments

This compact design makes the BV1000I-MSX particularly suitable for spaces where desk or floor area is limited, providing essential power protection without occupying valuable space.

Battery Performance

The BV1000I-MSX incorporates a basic yet reliable battery system:

  • Lead-acid battery technology
  • 3-5 year typical battery life expectancy
  • User-replaceable battery design (RBC17)
  • Removable battery for easy maintenance
  • Take-back program available for responsible disposal

The user-replaceable battery feature ensures that long-term maintenance is straightforward, extending the overall lifespan of the UPS while reducing environmental impact.

Environmental Considerations

The BV1000I-MSX addresses environmental concerns through several features:

  • Energy efficient product design
  • Removable battery for responsible replacement
  • Take-back program available
  • Part of Schneider Electric’s “Use Better, Use Longer, Use Again” initiative
  • Operating temperature range of 0-40°C
  • Low acoustic noise level of only 40 dBA

These features reflect Schneider Electric’s commitment to sustainability while ensuring the product performs reliably in various environments.

Ideal Users for the APC BV1000I-MSX

  • Home users with limited space – The ultra-compact dimensions (9.25×16.05×30.5 cm) and light weight (5.7 kg) make this UPS ideal for small apartments, dorm rooms, or home offices where space is at a premium.
  • Users with diverse equipment – The four universal receptacles accommodate various plug types without requiring adapters, making this UPS versatile for international equipment.
  • Basic computing setups – With 600W/1000VA capacity, the BV1000I-MSX provides adequate protection for a desktop computer, monitor, and peripherals during brief power disturbances.
  • Regions using British standard plugs – The BS1363A British input connection makes this model particularly suitable for the UK and other regions using this standard.
  • Budget-conscious consumers – The BV1000I-MSX delivers essential power protection features at an accessible price point, making it ideal for those seeking basic UPS functionality without advanced features.

APC 1000VA Back-UPS (BV1000I-MSX) Technical Specifications

Main Power Specifications
  • Main Input Voltage: 230V
  • Main Output Voltage: 230V
  • Rated Power: 600W / 1000VA
  • Product Type: Uninterruptible Power Supply (UPS)
  • UPS Type: Line interactive
  • UPS Size: WS
  • Wave Type: Stepped approximation to a sinewave
  • Input Voltage Limits: 170-280V
  • Network Frequency: 50/60 Hz +/- 5 Hz auto-sensing
  • Output Frequency: 50/60 Hz +/- 1 Hz unsynchronised
  • Transfer Time: 6 ms typical, 10 ms maximum
Connections
  • Input Connection Type: BS1363A British
  • Output Connection Type: 4 universal receptacles
  • Cable Length: 1.50 m
  • Number of Cables: 1
Included Equipment
  • User manual
Battery Specifications
  • Battery Type: Lead-acid battery
  • Battery Life: 3-5 years
  • Replacement Battery: RBC17
Physical Attributes
  • Color: Black
  • Height: 9.25 cm
  • Width: 16.05 cm
  • Depth: 30.5 cm
  • Net Weight: 5.7 kg
  • Mounting Preference: No preference
  • Mounting Mode: Not rack-mountable
Environmental Parameters
  • Acoustic Level: 40 dBA
  • Operating Altitude: 0-6,667 ft
  • Storage Altitude: 0-15,240 m
  • Ambient Air Temperature for Operation: 0-40°C
  • Ambient Air Temperature for Storage: -20-50°C
  • Relative Humidity: 0-90%
  • IP Degree of Protection: IP20
Surge Protection and Filtering
  • Surge Energy Rate: 156J
Communications & Management
  • Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
  • Graph Display: 1
Conformance and Certification
  • Product Certifications: CE
  • Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental Compliance
  • Energy Efficiency: Energy efficient product
  • Packaging made with recycled cardboard: No
  • Packaging without single use plastic: No
Circularity Profile
  • Removable Battery: Yes
  • Take-back: Yes
Warranty and Support
  • Warranty: 1 year
